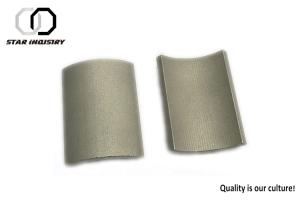

High Working Temp Arc Samarium cobalt magnets Arc Magnet SmCo1-17
SmCo or Samarium Cobalt is also classified as a rare earth permanent magnet, and entered the market in the 1970s.
It is divided into two groups: Sm1Co5 and Sm2Co17, referred to as 1-5 and 2-17 respectively,
which defines the energy range, the 2-17 being the higher of the two groups. The cost of SmCo magnets is high.
Our Services:
1.customized size and grade design and production.
2. our regular grade for your reference: SmCo-16,24,SmCo-20s, 22s, SmCo-24H,SmCo-30D
| Grade | Remanence (Br)( KGs) | Coercive Force (Hcb)( Koe) | Intrinsic Coercivity (Hcj)(Koe) | Max Energy (BH)max (MGoe) | Temperature Coefficient (℃) |
| SmCo5 |
| YX-5 | 4.30-5.00 | ≥3.80 | ≥15 | 4.0-5.0 | ≤250 |
| YX-6 | 5.00-6.00 | ≥4.50 | ≥15 | 5.0-7.0 | ≤300 |
| YX-16 | 7.50-8.50 | ≥7.00 | ≥15 | 14-17 | ≤250 |
| YX-18 | 8.50-9.20 | ≥8.00 | ≥18 | 16-19 | ≤250 |
| YX-20 | 8.80-9.50 | ≥8.30 | ≥18 | 18-21 | ≤250 |
| YX-22 | 9.00-9.80 | ≥8.50 | ≥15 | 21-23 | ≤250 |
| YX-24 | 9.5-10.30 | ≥9.00 | ≥15 | 22-25 | ≤250 |
| Sm2Co17 |
| YX-24A | 9.5-10.30 | 5.0-6.0 | 6.00-8.50 | 22-25 | ≤200 |
| YX-24B | 9.5-10.30 | ≥9.00 | ≥15 | 22-25 | ≤250 |
| YX-24C | 9.5-10.30 | ≥9.00 | ≥25 | 22-25 | ≤300 |
| YX-24D | 9.5-10.30 | ≥9.00 | ≥30 | 22-25 | ≤350 |
| YX-26A | 10.0-10.7 | 5.0-6.0 | 6.00-8.50 | 24-27 | ≤200 |
| YX-26B | 10.0-10.7 | ≥9.00 | ≥15 | 24-27 | ≤250 |
| YX-26C | 10.0-10.7 | ≥9.00 | ≥25 | 24-27 | ≤300 |
| YX-26D | 10.0-10.7 | ≥9.00 | ≥30 | 24-27 | ≤350 |
| YX-28A | 10.3-11.0 | 5.0-6.0 | 6.00-8.50 | 26-29 | ≤200 |
| YX-28B | 10.3-11.0 | ≥9.00 | ≥15 | 26-29 | ≤250 |
| YX-28C | 10.3-11.0 | ≥9.00 | ≥25 | 26-29 | ≤300 |
| YX-28D | 10.3-11.0 | ≥9.00 | ≥30 | 26-29 | ≤350 |
| YX-30A | 10.8-11.3 | 5.0-6.0 | 6.00-8.50 | 28-31 | ≤200 |
| YX-30B | 10.8-11.3 | ≥9.00 | ≥15 | 28-31 | ≤250 |
| YX-30C | 10.8-11.3 | ≥9.00 | ≥25 | 28-31 | ≤300 |
| YX-30D | 10.8-11.3 | ≥9.00 | ≥30 | 28-31 | ≤350 |
| Bonded SmCo |
| ZYX-5 | 4.30-5.00 | ≥3.80 | 8.0-12.0 | 4.0-5.0 | ≤180 |
| ZYX-8 | 5.00-6.50 | ≥4.50 | 8.0-12.0 | 6.0-9.0 | ≤180 |
| Molding SmCo |
| ZSYX | ≤6.50 | ≤6.0 | 8.0-12.0 | ≤9.0 | ≤180 |
Mainly applications:
Wind Turbine / wind generator
power generator / power motor/ electric motor
electric car motor permanent magnet / motor for electric vehicle
motor magnet for hybrid electric vehicle / hybrid synchro motor / hybrid stepping motor
For sensor
For machinery products / for machine
For Hardware Products
